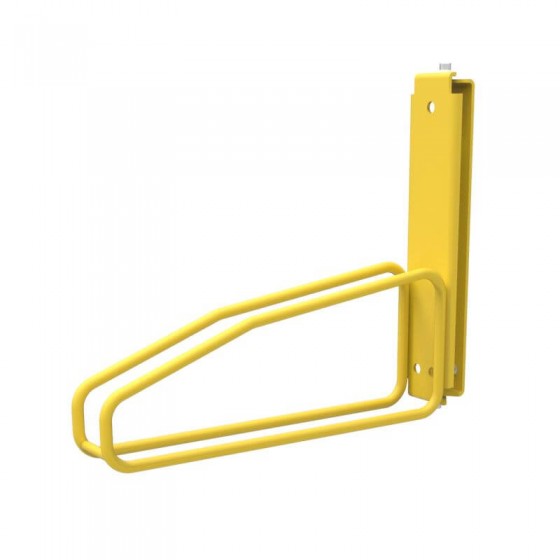

E3VR-DYN Dynamic Vertical Bike Rack
The E3VR-DYN vertical bike rack offers a dynamic pivot motion to allow reduced spacings of 400mm that is compliant with AS2890.3 (2015).

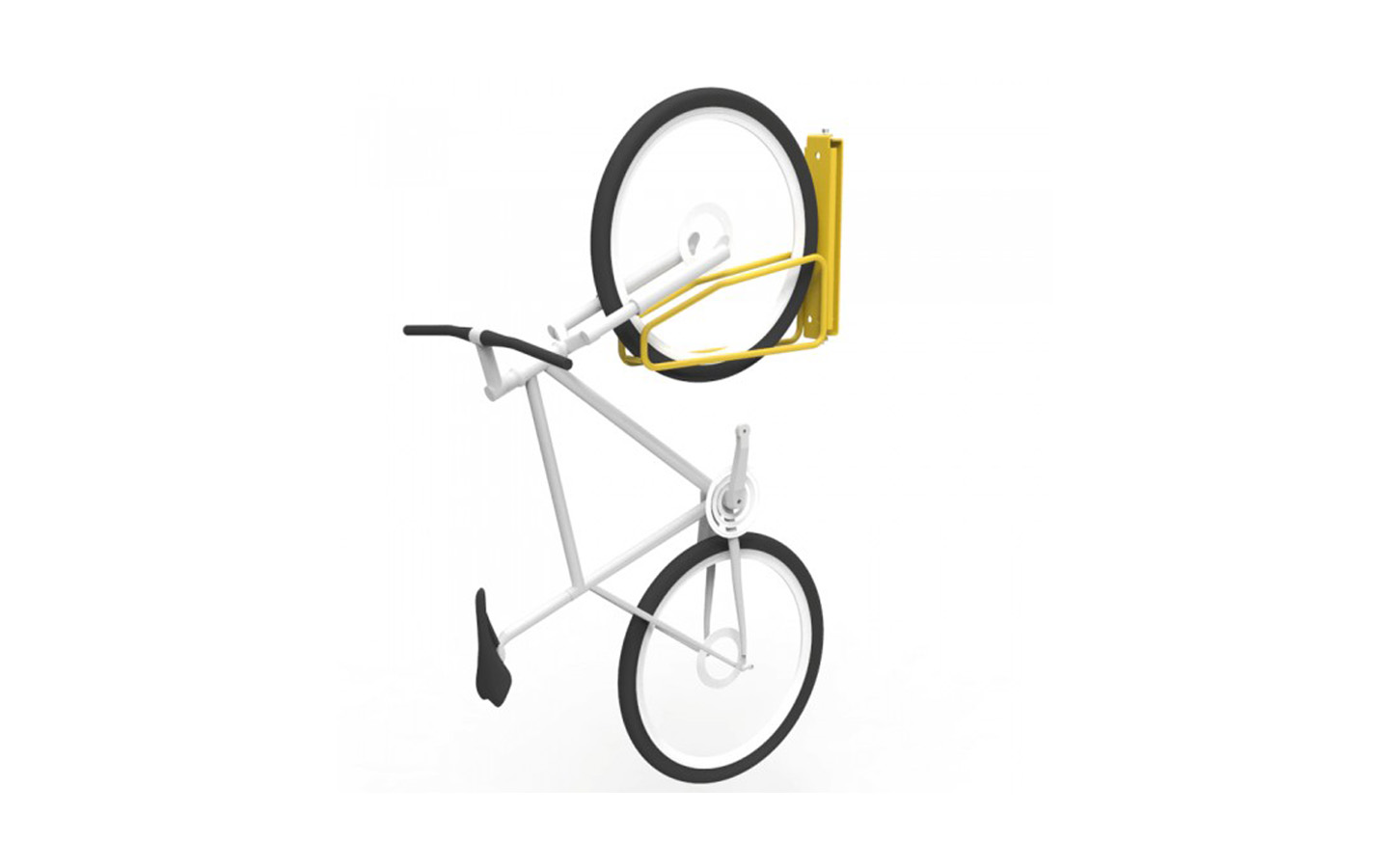

Using a dynamic pivot action, the E3VR-DYN vertical bike rack gently cradles the front wheel and allows easy locking of the wheel and bike frame. The E3VR-DYN can be mounted directly to existing walls or to the E3VR-P mounting post.
Best suited for indoor or covered areas such as end-of-trip bike rooms or bike parking storage areas.
E3VR-DYN bike racks comply with AS2890.3 (2015) requirements.
Downloads
Features & Benefits
Capacity
- 1 bike per rack
Construction
- Heavy duty high quality steel
- 16mm CHS x 1.2mm
Fixings
- 3 x M8 x 40mm pin head torx securityscrews with tool, washers and nylon wallplugs included
Assembly
- Supplied fully welded and assembled. For pole mounted option, assembly to pole E3VR-P required
Finishes
- In Stock – Yellow Powder Coat
- Option – Galvanised
- Option – 304 Stainless Steel
- Option – Colour Powder Coat (Standard colour range)
More Uses
- Office buildings
- Residential complexes
- Schools and universities
- Indoor or covered car parks
- Bike storage rooms
- Shopping centres and malls
- Public transport stations
